The short version: Nginx is the only thing listening on ports 80 and 443. WordPress runs through PHP-FPM, Tomcat listens on 127.0.0.1:8080, and Nginx picks the right backend by domain name. Certbot gets a Let's Encrypt certificate for each domain.
shell
1sudo apt install nginx php-fpm php-mysql mysql-server tomcat102sudo certbot --nginx -d example.com -d www.example.com3sudo certbot --nginx -d app.example.comThat's the skeleton. Below is every step, with the config files, the Tomcat settings most guides skip, and fixes for the errors you're likely to hit. All commands were tested on Ubuntu 24.04 and 22.04 with a local test ACME server in place of Let's Encrypt.
How the setup works
You can't bind two web servers to port 443 on one IP address. So instead of giving Tomcat its own SSL port, put Nginx in front of everything and let it handle SSL:
- Nginx listens on ports 80 and 443, holds both certificates and redirects HTTP to HTTPS.
- WordPress at
example.comruns on PHP-FPM. Nginx talks to it through a Unix socket. - Tomcat at
app.example.comlistens only on127.0.0.1:8080. Nginx forwards requests to it withproxy_pass, so port 8080 is never open to the internet.
Tomcat speaks plain HTTP behind Nginx. You don't need a keystore, a Java SSL connector or a second certificate format.
Requirements
- An Ubuntu 24.04 server (22.04 works with a few changes, see below) with a user that can run
sudo. - Two domain names pointing to the server's IP. In this guide that's
example.com(pluswww.example.com) for WordPress andapp.example.comfor Tomcat. Replace them with yours everywhere. - Ports 80 and 443 open in the firewall and in your cloud provider's security group. Let's Encrypt checks your domain over port 80, so keep it open.
Update the server first:
shell
1sudo apt update2sudo apt upgradeInstall the packages
Step 1: Install Nginx, PHP-FPM and MySQL
Install Nginx, PHP-FPM with the extensions WordPress needs, and MySQL:
shell
1sudo apt install nginx php-fpm php-mysql php-curl php-gd php-mbstring php-xml php-zip php-intl mysql-serverOn Ubuntu 24.04 this gives you Nginx 1.24, PHP 8.3 and MySQL 8.0. All three services start right after the installation. MariaDB works too if you prefer it: install mariadb-server instead of mysql-server, and the SQL below stays the same.
Older guides add php-mcrypt to this list. Leave it out: the mcrypt extension was removed from PHP in version 7.2, and Ubuntu no longer has the package, so apt would refuse to install the whole list.
Step 2: Install Tomcat
On Ubuntu 24.04, install Tomcat 10.1 from the Ubuntu repository:
shell
1sudo apt install tomcat10The package pulls in Java 21, creates a tomcat system user and a systemd service, and gets updates through apt along with the rest of the system. Its config lives in /etc/tomcat10, and web apps go to /var/lib/tomcat10/webapps.
Check that it answers locally:
shell
1curl -s http://127.0.0.1:8080/ | grep '<h1>'You should see the default Tomcat page:
shell
1<h1>It works !</h1>If you need Tomcat 11 or the very latest 10.1 release on the day it comes out, use the tarball from the Apache Tomcat site instead. The Nginx part of this guide doesn't change, but you'll create the user and the systemd unit yourself and update Tomcat by hand.
Put Tomcat behind Nginx
Step 3: Bind Tomcat to localhost
By default Tomcat listens on port 8080 on every network interface, so anyone can skip Nginx and open the app over plain HTTP. It also means the same content lives at two addresses. Bind Tomcat to localhost so only Nginx can reach it.
Open /etc/tomcat10/server.xml and find the HTTP connector:
html
1<Connector port="8080" protocol="HTTP/1.1"Add the address attribute:
html
1<Connector address="127.0.0.1" port="8080" protocol="HTTP/1.1"Leave the rest of the connector as it is. You can find all connector options in the Tomcat HTTP connector reference.
Step 4: Tell Tomcat it runs behind a proxy
Behind Nginx, Tomcat sees every request as plain HTTP from 127.0.0.1. Your app then thinks it's on http://, logs the wrong client IP and may build http:// links and redirects on an HTTPS site. In our test, a page that prints the request details showed this over HTTPS:
shell
1scheme=http secure=false host=app.example.com port=80 remote=127.0.0.1The Remote IP Valve fixes that. It reads the X-Forwarded-For and X-Forwarded-Proto headers that Nginx sends. In the same server.xml, add it inside the <Host> element, right before the closing </Host> tag:
html
1<Valve className="org.apache.catalina.valves.RemoteIpValve"2 remoteIpHeader="X-Forwarded-For"3 protocolHeader="X-Forwarded-Proto" />The valve trusts these headers only from internal addresses such as 127.0.0.1, so a client can't fake them by going around Nginx. Details are in the Tomcat valve reference.
Restart Tomcat and check what it listens on:
shell
1sudo systemctl restart tomcat102sudo ss -ltnp | grep 8080shell
1LISTEN 0 100 [::ffff:127.0.0.1]:8080 *:* users:(("java",pid=13283,fd=39))[::ffff:127.0.0.1] is how Java shows an IPv4 address on an IPv6 socket. It's localhost only. A request to the server's public IP on port 8080 now gets Connection refused.
To serve your own application at the root of app.example.com, deploy it as ROOT.war:
shell
1sudo systemctl stop tomcat102sudo rm -rf /var/lib/tomcat10/webapps/ROOT3sudo cp myapp.war /var/lib/tomcat10/webapps/ROOT.war4sudo systemctl start tomcat10Prepare WordPress
Step 5: Create the database
On Ubuntu, the MySQL root user logs in through the system account, without a password. Open the MySQL shell with sudo:
shell
1sudo mysqlCreate a database and a separate user for WordPress. Use a strong password of your own:
shell
1CREATE DATABASE wordpress DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci;2CREATE USER 'wordpress'@'localhost' IDENTIFIED BY 'change-this-password';3GRANT ALL PRIVILEGES ON wordpress.* TO 'wordpress'@'localhost';4EXIT;MySQL listens only on 127.0.0.1 by default, so the database isn't reachable from outside. If you want to remove the test database and set other basic options, run sudo mysql_secure_installation.
Step 6: Download WordPress
Get the latest WordPress and put it in the site's root directory:
shell
1cd /tmp2curl -O https://wordpress.org/latest.tar.gz3tar -xzf latest.tar.gz4sudo mv wordpress /var/www/example.com5sudo chown -R www-data:www-data /var/www/example.comDon't create wp-config.php by hand. The web installer will ask for the database details in Step 12 and write the file itself, with unique security keys.
Step 7: Raise the PHP upload limit
PHP accepts uploads of up to 2 MB by default, which is too small for most WordPress media. Raise it with a separate config file, so package updates don't overwrite it:
shell
1printf "upload_max_filesize = 64M\npost_max_size = 64M\n" | sudo tee /etc/php/8.3/fpm/conf.d/99-wordpress.ini2sudo systemctl restart php8.3-fpmKeep this value in line with client_max_body_size in the Nginx config below.
Configure Nginx
Start with plain HTTP server blocks. Certbot will add HTTPS to them in Step 11. If you write the SSL lines first, nginx -t fails because the certificate files don't exist yet.
Step 8: Create a server block for WordPress
Create /etc/nginx/sites-available/example.com:
nginx
1server {2 listen 80;3 listen [::]:80;4 server_name example.com www.example.com;5
6 root /var/www/example.com;7 index index.php;8
9 # Allow media uploads up to 64 MB10 client_max_body_size 64M;11
12 location / {13 try_files $uri $uri/ /index.php?$args;14 }15
16 location ~ \.php$ {17 include snippets/fastcgi-php.conf;18 fastcgi_pass unix:/run/php/php-fpm.sock;19 }20
21 location ~* \.(css|js|gif|ico|jpe?g|png|svg|webp|woff2?)$ {22 expires 30d;23 log_not_found off;24 }25
26 location ~ /\.ht {27 deny all;28 }29}A few notes on this config:
/run/php/php-fpm.sockis a link to the socket of the installed PHP version (php8.3-fpm.sockon 24.04,php8.1-fpm.sockon 22.04). The config keeps working after a PHP upgrade, and you won't end up with a stale path likephp7.0-fpm.sock, which gives you a 502 error.snippets/fastcgi-php.confcomes with the Ubuntu Nginx package. It passes the script path to PHP-FPM and returns 404 for PHP files that don't exist.try_filessends pretty permalinks toindex.php.
Step 9: Create a server block for Tomcat
Create /etc/nginx/sites-available/app.example.com:
nginx
1server {2 listen 80;3 listen [::]:80;4 server_name app.example.com;5
6 location / {7 proxy_pass http://127.0.0.1:8080;8
9 proxy_set_header Host $host;10 proxy_set_header X-Real-IP $remote_addr;11 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;12 proxy_set_header X-Forwarded-Proto $scheme;13 }14}proxy_pass has no trailing slash, so Nginx passes the request path to Tomcat unchanged. The Host and X-Forwarded-* headers are what the Remote IP Valve from Step 4 reads. More options are in the Nginx proxy module docs.
Step 10: Enable both sites
Disable the default Nginx site, enable the new ones, test the config and reload Nginx:
shell
1sudo rm /etc/nginx/sites-enabled/default2sudo ln -s /etc/nginx/sites-available/example.com /etc/nginx/sites-enabled/3sudo ln -s /etc/nginx/sites-available/app.example.com /etc/nginx/sites-enabled/4sudo nginx -t5sudo systemctl reload nginxnginx -t should print:
shell
1nginx: the configuration file /etc/nginx/nginx.conf syntax is ok2nginx: configuration file /etc/nginx/nginx.conf test is successfulNow app.example.com shows the Tomcat page over HTTP, and example.com redirects to the WordPress setup page.
Get SSL certificates with Let's Encrypt
Step 11: Request a certificate for each site
Install Certbot as described in our guide on how to install Let's Encrypt for Nginx on Ubuntu. On a fresh server it's two commands:
shell
1sudo snap install --classic certbot2sudo ln -s /snap/bin/certbot /usr/local/bin/certbotThen get a certificate for each site. Certbot finds the matching server_name, adds the SSL settings and sets up the redirect from HTTP to HTTPS:
shell
1sudo certbot --nginx -d example.com -d www.example.com2sudo certbot --nginx -d app.example.comAfter that, the Tomcat server block looks like this (the WordPress one gets the same changes):
nginx
1server {2 server_name app.example.com;3
4 location / {5 proxy_pass http://127.0.0.1:8080;6
7 proxy_set_header Host $host;8 proxy_set_header X-Real-IP $remote_addr;9 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;10 proxy_set_header X-Forwarded-Proto $scheme;11 }12
13 listen [::]:443 ssl; # managed by Certbot14 listen 443 ssl; # managed by Certbot15 ssl_certificate /etc/letsencrypt/live/app.example.com/fullchain.pem; # managed by Certbot16 ssl_certificate_key /etc/letsencrypt/live/app.example.com/privkey.pem; # managed by Certbot17 include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot18 ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot19}20server {21 if ($host = app.example.com) {22 return 301 https://$host$request_uri;23 } # managed by Certbot24
25 listen 80;26 listen [::]:80;27 server_name app.example.com;28 return 404; # managed by Certbot29}The included options-ssl-nginx.conf turns on TLS 1.2 and 1.3 with a modern cipher list, so you don't need to write ssl_protocols and ssl_ciphers yourself. Certbot also sets up automatic renewal for both certificates. Check it with a dry run:
shell
1sudo certbot renew --dry-runCheck both apps over HTTPS
Step 12: Test the sites and finish the WordPress installer
Check the redirect and both sites from the command line:
shell
1curl -sI http://app.example.com/ | grep -i location2curl -s https://app.example.com/ | grep '<h1>'3curl -sI https://example.com/ | grep -i locationshell

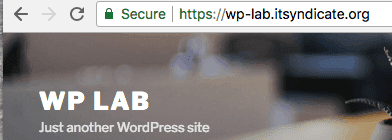

1Location: https://app.example.com/2<h1>It works !</h1>3Location: https://example.com/wp-admin/setup-config.phpNow open your WordPress domain over HTTPS in a browser and finish the WordPress installer. On the first screen, enter the database name, user and password from Step 5, and keep localhost as the database host. On the second, set the site title and the admin account.
WordPress detects HTTPS on its own and saves the HTTPS address as the site address, so you don't need to change any URL settings.
The installer creates wp-config.php readable and writable by everyone (mode 666). Tighten it right away:
shell
1sudo chmod 640 /var/www/example.com/wp-config.phpAt this point both apps run on the same server behind one Nginx, each with its own Let's Encrypt certificate. Tomcat can only be reached through Nginx, and it knows the request came over HTTPS.
On Ubuntu 22.04
The steps are the same, with three differences:
- Install
tomcat9instead oftomcat10, because Ubuntu 22.04 has notomcat10package. Use/etc/tomcat9/server.xml,/var/lib/tomcat9/webappsandsudo systemctl restart tomcat9. The connector and valve lines stay the same. - PHP is version 8.1, so the upload limit file goes to
/etc/php/8.1/fpm/conf.d/and the service isphp8.1-fpm. The Nginx config stays the same thanks to thephp-fpm.socklink. - Tomcat 9 runs Java EE apps (
javax.*packages), and Tomcat 10 runs Jakarta EE apps (jakarta.*). An app built for one won't deploy on the other without changes. If you're starting fresh, Ubuntu 24.04 with Tomcat 10.1 is the better choice.
Alternative: Tomcat on a path of the same domain
If you have only one domain, you can serve the Java app from a path such as example.com/myapp/. Deploy it as myapp.war, so Tomcat serves it under /myapp/, and add this block to the WordPress server block, above location /:
nginx
1location ^~ /myapp/ {2 proxy_pass http://127.0.0.1:8080;3
4 proxy_set_header Host $host;5 proxy_set_header X-Real-IP $remote_addr;6 proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;7 proxy_set_header X-Forwarded-Proto $scheme;8}The ^~ matters. Without it, the regex locations for .php files and static files win over a plain prefix, and requests like /myapp/style.css go to the WordPress folder instead of Tomcat.
In our test, the CSS file returned 404 without ^~ and 200 with it. The Nginx location docs explain the matching order.
Keep the path in Nginx the same as the app's context path in Tomcat. Mapping /app/ to a Tomcat app deployed as ROOT is possible, but then you have to rewrite redirects and cookie paths as well. A subdomain is simpler.
Troubleshooting
502 Bad Gateway on the WordPress site. Nginx can't reach PHP-FPM. Look at the last line of /var/log/nginx/error.log. A message like connect() to unix:/run/php/php7.0-fpm.sock failed (2: No such file or directory) means the socket path in the config is wrong. Use /run/php/php-fpm.sock or check the real name with ls /run/php/. If the path is right, make sure PHP-FPM is running: sudo systemctl status php8.3-fpm.
502 Bad Gateway on the Tomcat site. The log says connect() failed (111: Connection refused) while connecting to upstream. Tomcat is stopped, still starting (give it a few seconds after a restart) or listening on another address. Check with sudo systemctl status tomcat10 and sudo ss -ltnp | grep 8080.
The Java app redirects to http:// or logs 127.0.0.1 as the client IP. The Remote IP Valve from Step 4 is missing, or Nginx doesn't send X-Forwarded-Proto. Check both and restart Tomcat.
nginx -t fails with SSL_CTX_set_cipher_list(...) failed (SSL: error:0A000118:SSL routines::invalid command). Your ssl_ciphers value is split across several lines. OpenSSL doesn't accept line breaks in the cipher list. Put the whole list on one line, separated by colons, or use the defaults from Certbot's options-ssl-nginx.conf. The TLSRef Configurator, the successor of the Mozilla SSL Configuration Generator, gives you a ready list if you need your own.
413 Request Entity Too Large when uploading to WordPress. The file is bigger than client_max_body_size. If WordPress says the file exceeds the maximum upload size, it's the PHP limit from Step 7.
Certbot can't verify the domain. Make sure the DNS record points to this server and port 80 is open, including in the cloud security group. More causes are covered in the Let's Encrypt guide.
Wrapping up
One Nginx in front of everything is the simplest way to run WordPress and a Java app on the same Ubuntu server. You get one place for certificates, one place for redirects, and no Java keystores. The two details people miss are binding Tomcat to 127.0.0.1 and adding the Remote IP Valve, so the app knows it runs over HTTPS.
